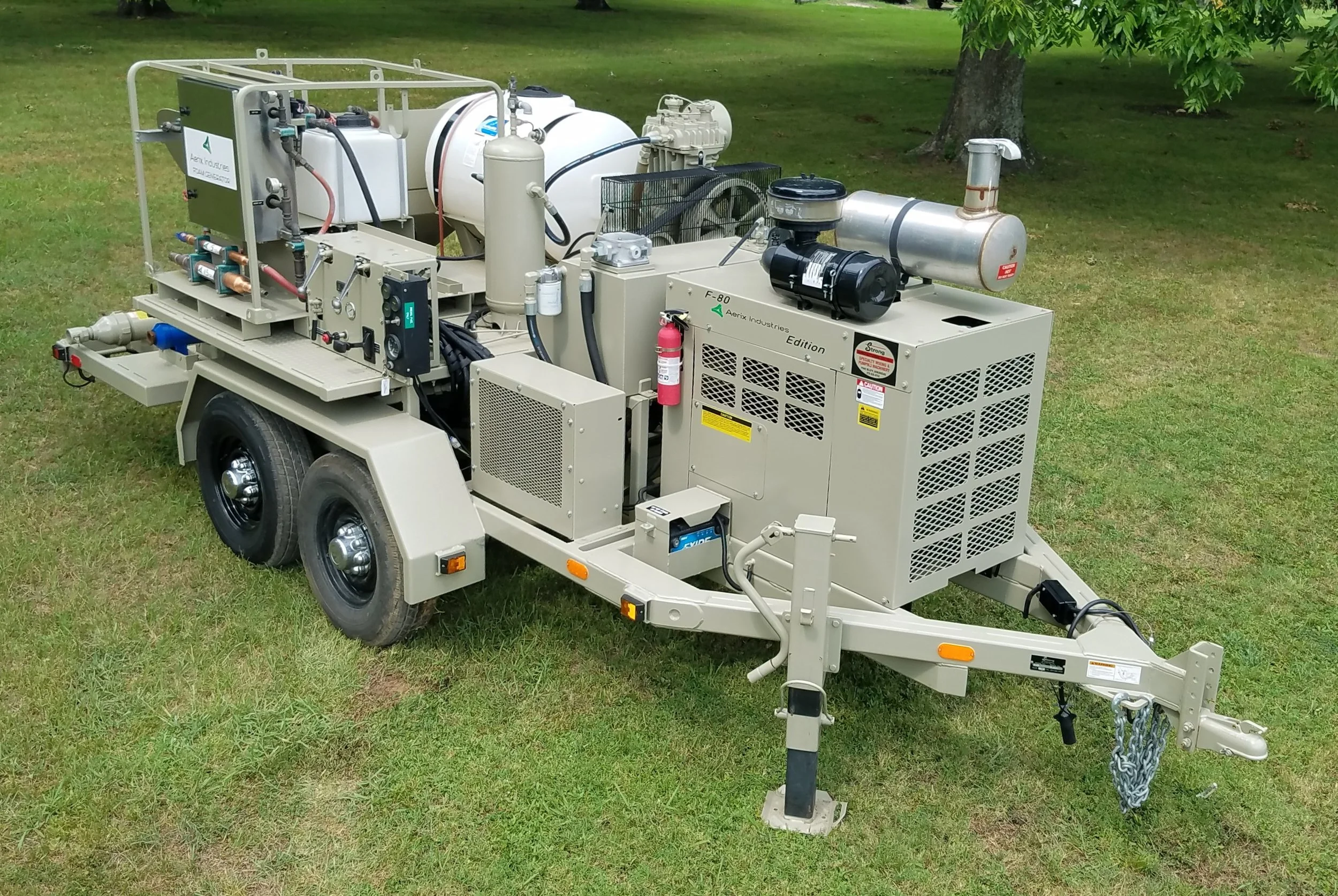

Cellular Concrete Pump


Engine

Industrial Diesel Water Cooled Engine: Equipped with Full Instrumentation and Safety Shut Down System, Four Speed Transmission.
Optional Engines, Contact Strong Manufacturing for other engine options.


Material Pump

Strong #80 progressive cavity pump. 12 cubic foot cellular concrete holding hopper. Adjustable speed drive, 50 GPM maximum discharge rate.


Air Compressor

Hydraulic Powered: 40CFM @ 200 PSI


Water Holding Tank

110-Gal Capacity


Auto-Foam Generator

Panel with digital flow meters for both the liquid and air components
12 GPM water-driven, adjustable, concentrate metering pump
Nozzles for various foam output production
120V electric-driven solution booster pump
14-Gal foam solution surge tank

AIR REQUIREMENTS: Minimum-5CFM @60PSI Maximum-30CFM @150PSI


WATER REQUIREMENT: Minimum- 1GPM @60PSI Maximum-12GPM @100PSI

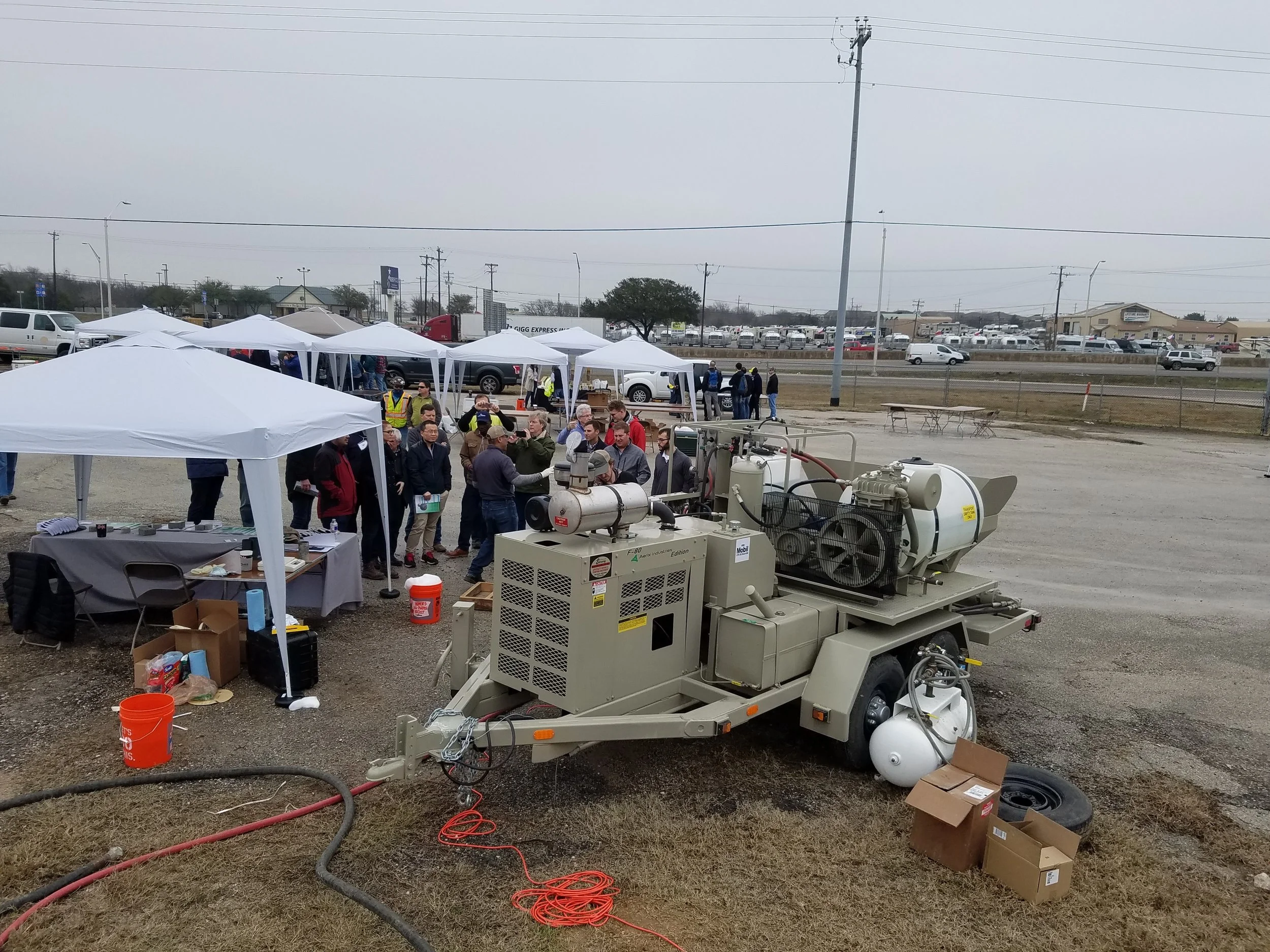

2018 Texas University-Grouting and Cellular Concrete Pump Convention
